Product Overview

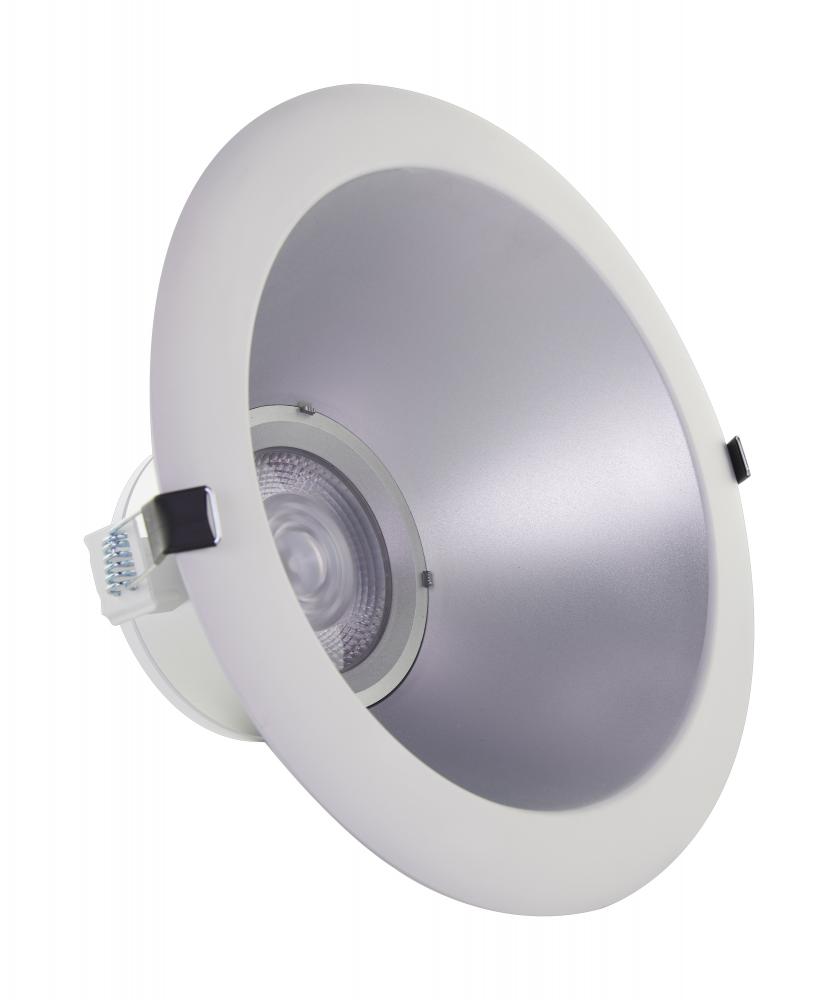

46 Watt Commercial LED Downlight; 10 in.; Color Adjustable; Lumen Adjustable; 120-277 volt

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

Silver

Style:

Traditional

Option:

LED

Prop 65

Lumens:

1601-2600

Kelvin:

4001-4500

Refinement Options

Category:

Recessed

Sub Category:

Commercial

Style:

Utility

Bulb Hours:

50000

Bulb Kelvin:

Warm to Cool White

Bulb Shape:

Integrated LED

Bulb Type:

LED

Diameter:

11.3

Dimmable:

Yes-Dimmable

Harmonized Codes:

9405.42.6000

Lumens:

2500L/3000L/3500L

Ship Carton Height:

5.91

Ship Carton Length:

11.81

Ship Carton Width:

11.81

Warranty:

5 Year Limited - LED Commercial Downlights

Air Tight:

No

Amps:

0.275-0.119/0.333-0.144/0.383-0.166A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Spread:

40

CA Prop-65:

Lead

Can Size:

10 in.

Carton Cubic Feet:

0.477

Cartons Per Unit:

1

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Ceiling Aperture:

10.00 in. Cutout

Connection:

Direct Wired

Country Of Origin:

China

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming Only

Efficacy:

75.76/75.00/76.09 LPW

FCC Compliant:

Yes

Feature 1:

Lawful for sale in California

Feature 2:

Selectable wattage, lumens, and CCT

Feature 3:

Remote driver and J-box with knockouts

Feature 4:

Quick connect feature for easy installation

Feature 5:

5 year limited warranty

Finish Family:

Silver

Fixture shape:

Round

Flr Equiv:

2 x 26W CFL

Has Driver:

Yes

Has Emergency Battery:

No

IC Rated:

Yes

Incandescent Equivalent:

150W/200W/250W

Indoor Outdoor:

Indoor

Installation Notes:

Can be installed with or without the rough-in plate (80-959)

JA8 Compliant:

No

Lens Finish:

Clear

Lens Material:

Polycarbonate (PC)

Long Description:

Satco's S11817 wattage selectable, 10 inch LED commercial downlight is the perfect solution for offices, stores, hospitals, and hotels. Dimmable and CCT selectable, this direct wired downlight installs easily even in the most challenging renovations an

Material:

Aluminum

Mounting Procedure:

Ceiling

Operating Frequency:

60Hz

Operating Temprature:

-20C (-4F) to +40C (+104F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.98

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

This a commercial LED downlight with Color Quick technology: Select among a range of watts, lumens, and color temperatures. An outboard LED driver/junction box allows for easy placement, even in the most challenging renovations. The downlight mounts secure

Safety Listing:

cETLus - Listed

SDS class:

LED_Lamp

Short Description:

46WLED/CDL/10/ADJ-CCT/40D

Specification Notes:

Default CCT setting is 3000K.  Default wattage setting is 46W.

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Trim Color:

White

Wattage Selectable:

Yes

Weight Lb.:

2.97

Manufacturer Info

Manufactured By:

Satco Products Inc.
