Product Overview

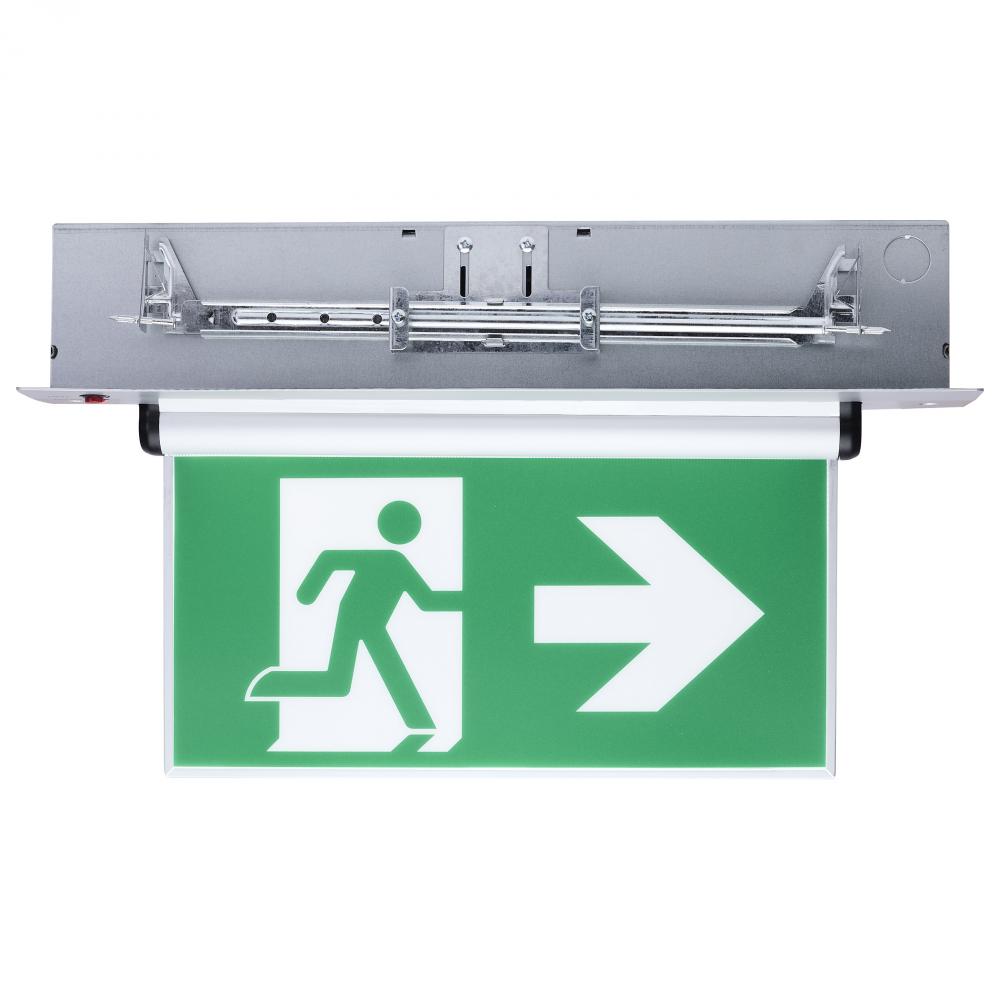

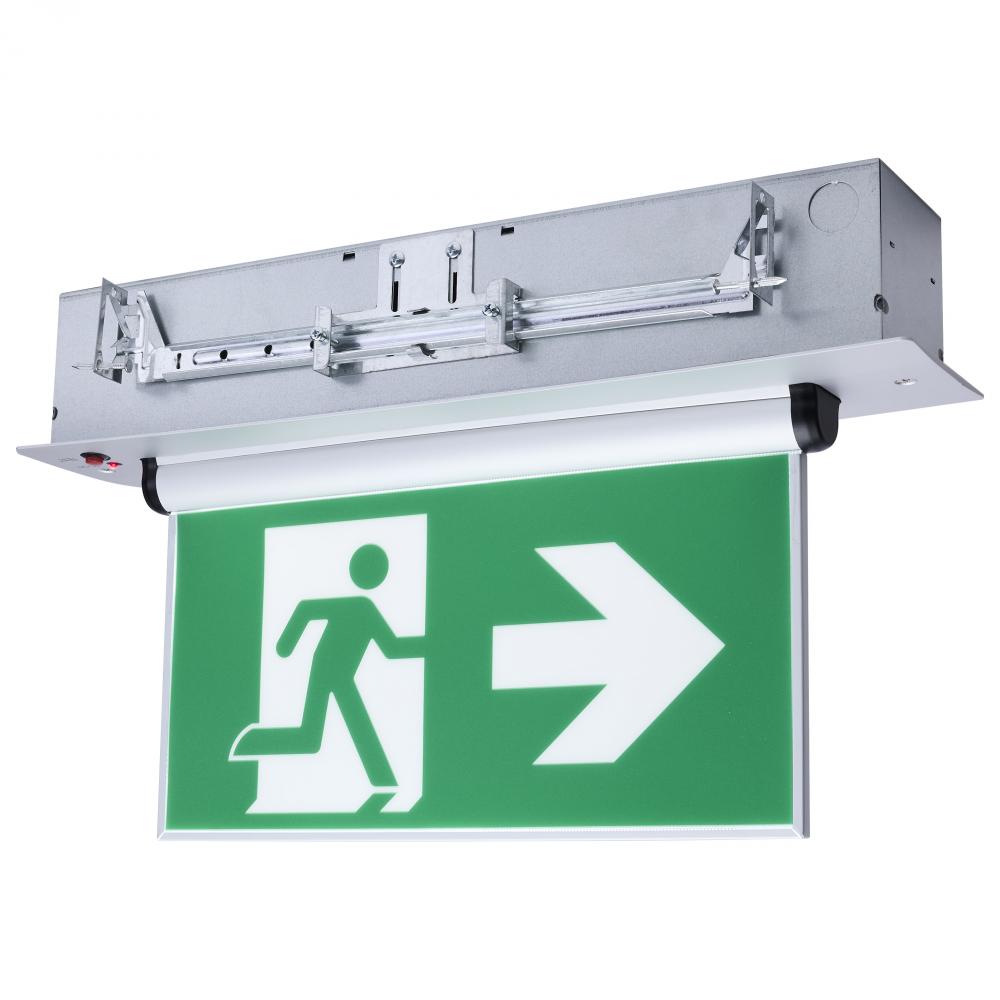

Running Man Green Edge Lit Exit Sign; 120-347V; 2HR backup; Single/Dual Face; Universal Surface or Recessed Mounting; Pivoting Panel

Standard Information

Option:

LED

Prop 65

Refinement Options

Category:

Lighting Products

Sub Category:

Exit Sign

Style:

Utility

Bulb Shape:

Integrated LED

Bulb Type:

LED

Dimmable:

Non-Dimmable

Harmonized Codes:

9405.61.6000

Ship Carton Height:

8.66

Ship Carton Length:

18.5

Ship Carton Width:

4.72

Warranty:

2-Years

Amps:

0.028-0.009A

ANSI Base:

Integrated

Battery Chemistry:

Ni-Cad

CA Prop-65:

Lead

Carton Cubic Feet:

0.4376

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Non-Compliant - Only for sale in Canada

CEC Terse:

Non-Compliant

CEC Web Text:

Non-Compliant

Country Of Origin:

China

CRI:

80+

Depth:

5.35

Feature 1:

Single or Dual Face

Feature 10:

>500 Life Cycles

Feature 2:

Integrated Battery Backup

Feature 3:

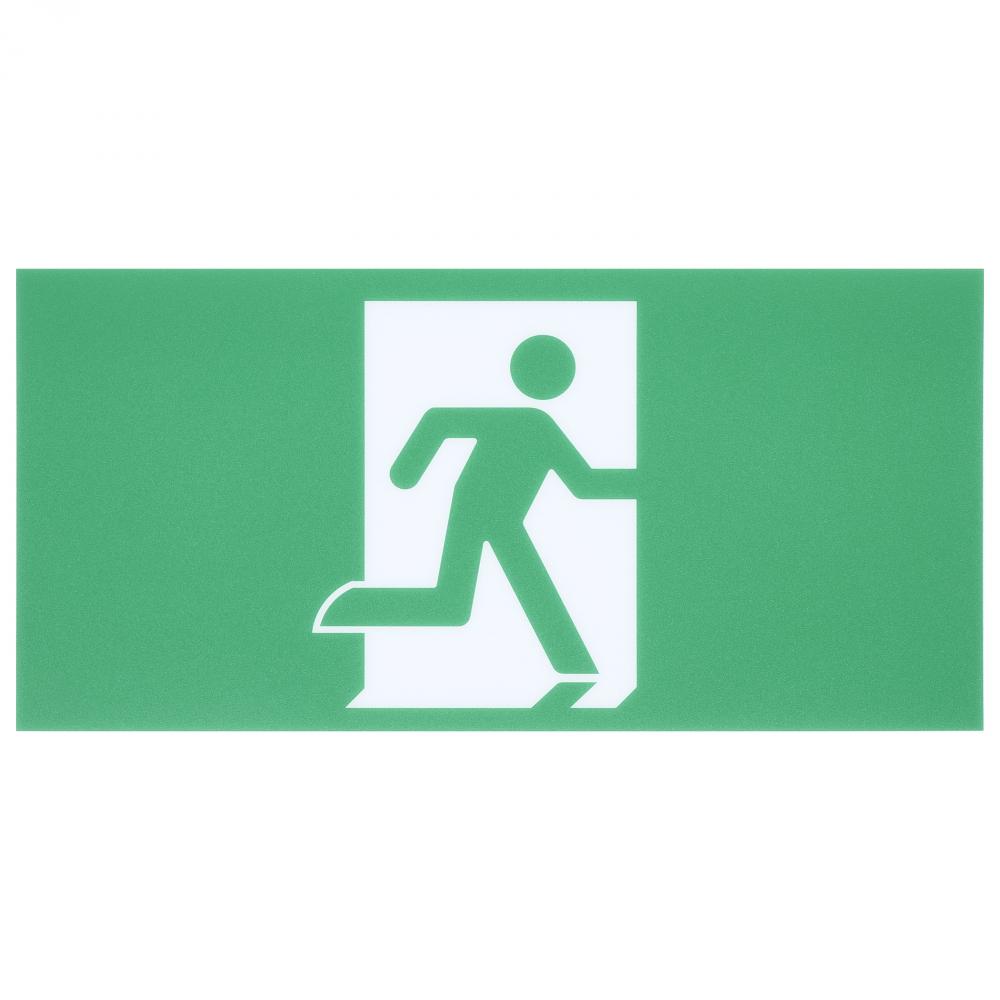

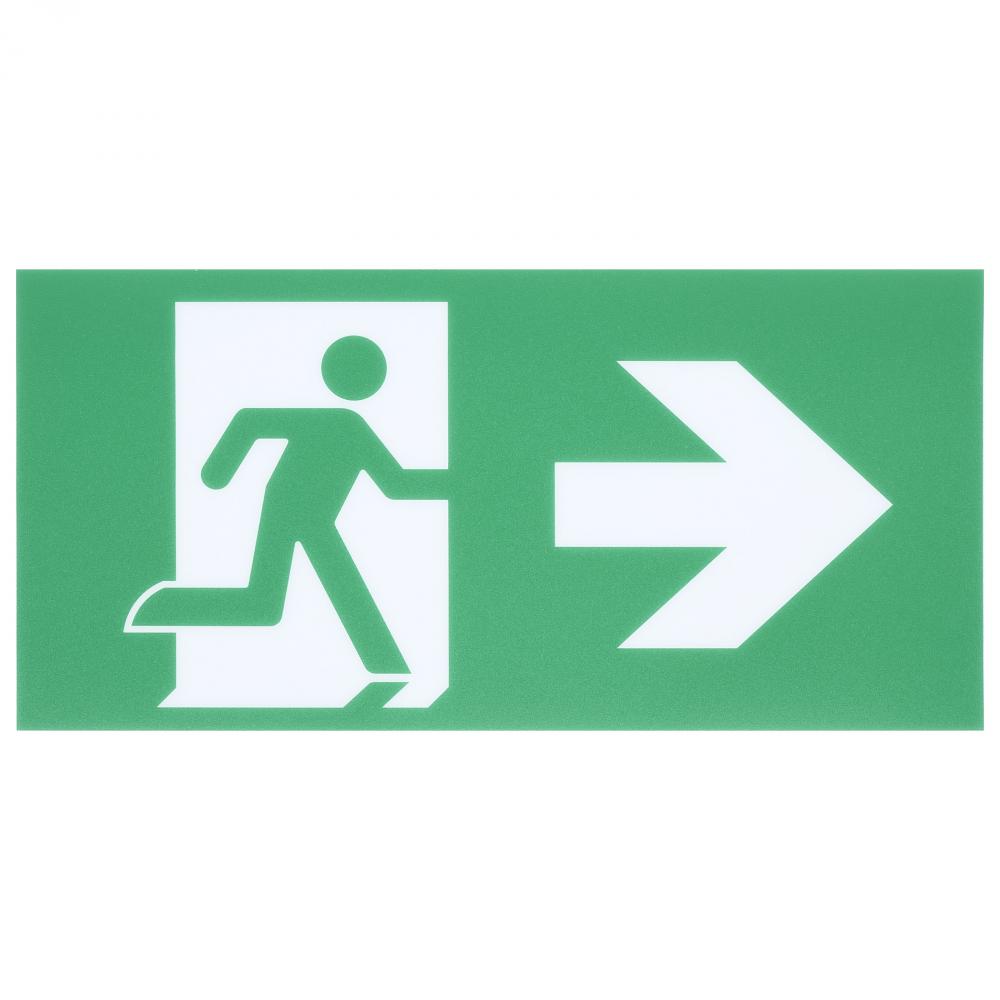

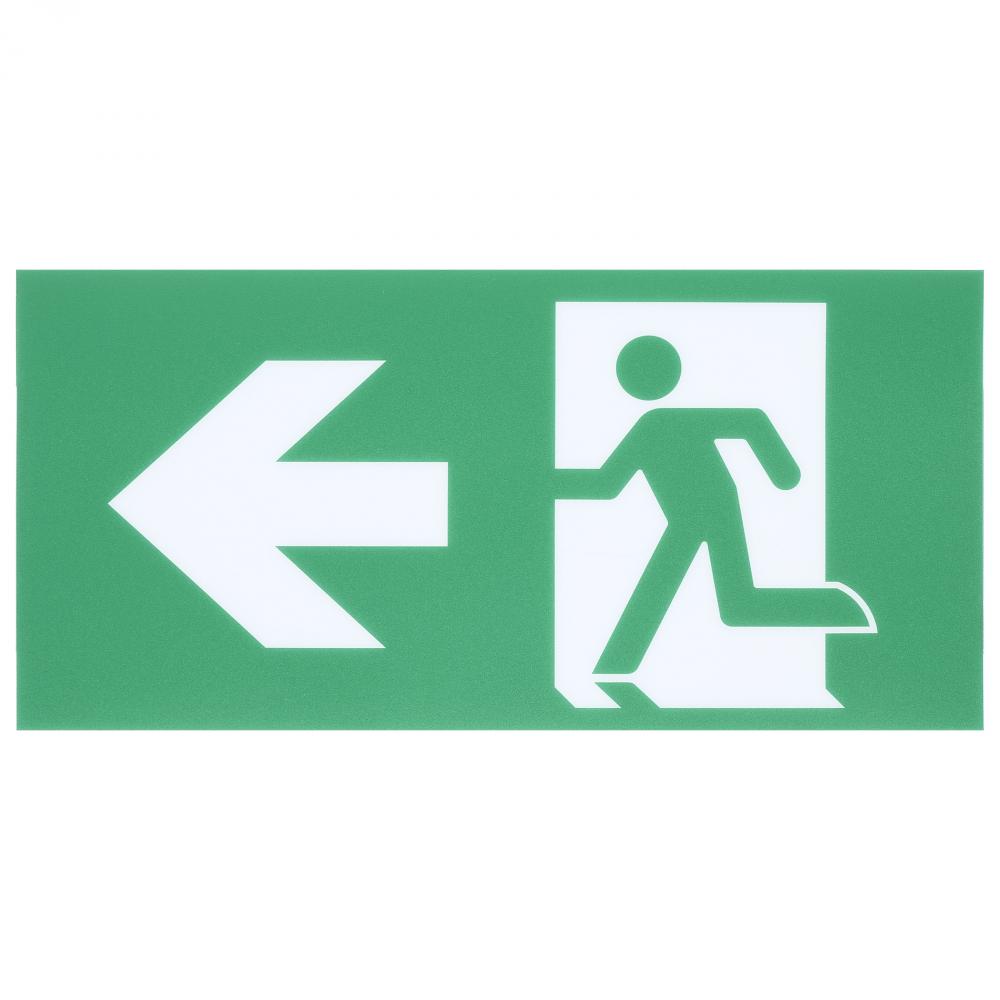

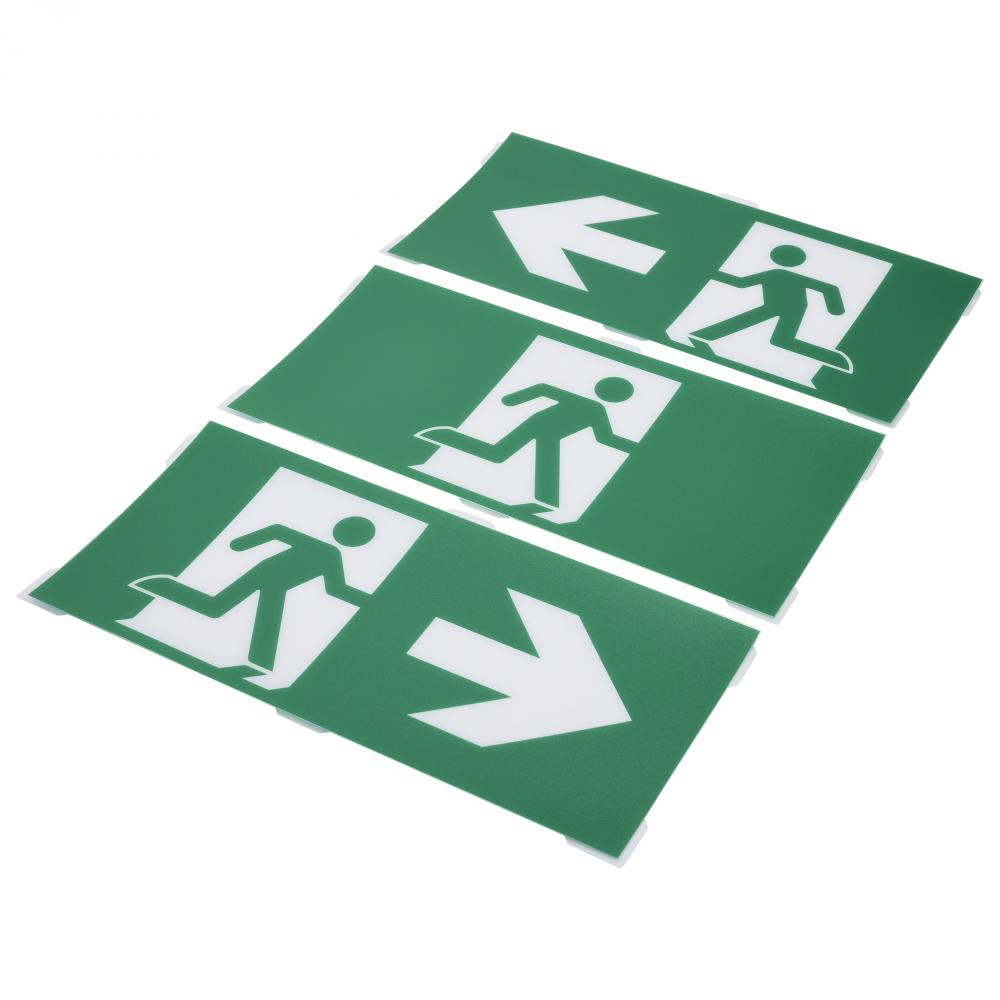

Interchangeable Pictograms

Feature 4:

Universal Mounting with Pivoting Pictogram Panel

Feature 5:

Damp Location Rated

Feature 6:

120-Minute Battery Run Time

Feature 7:

Complies with ICES-005 Class B

Feature 8:

CSA, OSHA, and NFPA Compliant

Feature 9:

Push-to-Test Button

Finish Family:

Metallic

Has Emergency Battery:

Yes

Indoor Outdoor:

Indoor

IP Rating:

IP40

JA8 Compliant:

No

Lens Finish:

Clear

Lens Material:

Acrylic

Long Description:

Keep your building safe and secure with the SATCO NUVO LED 67-530 Running Man Sign. Choose single or dual-face installation and customize the pictogram to fit your needs. The unique pivoting head on this model allows for optimal positioning based on your l

Material:

Aluminum

Mounting Procedure:

Universal

Operating Frequency:

60Hz

Operating Temprature:

+10C (+50F) to +40C (+104F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.38

Quantity In Pack:

1

R9 Value:

15

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

Keep your building safe and secure with the SATCO NUVO LED Running Man Signs. Choose single or dual-face installation and customize the pictogram to fit your needs. The unique pivoting head on this model allows for optimal positioning based on your locatio

Safety Listing:

CSAus

SDS class:

LED_Fixture

Short Description:

EX SIGN-CAN-EL-AL

Sloped Ceiling Compatible:

No

Specification Notes:

Ni-Cad Battery; 120 minute discharge time

Temperature (CCT):

5700K

Title 20 Compliant:

No

Title 24 Compliant:

No

Total Harmonic Distortion:

120%-140%

Wattage Selectable:

No

Weight Lb.:

5.95

Manufacturer Info

Manufactured By:

Satco Products Inc.
